The 5-Minute Process of Identifying a Defective Fuel Injector

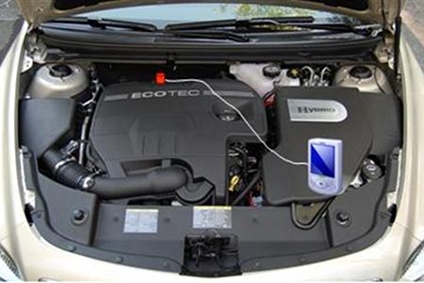

Figure 1: Fuel Injector Testing Instrument (a sensor placed at one location tests all the injectors in an engine)

Attach the sensor to the designated location in the engine compartment.

graph1

Observe the impact intensities generated when injector valves open and close, as well as the opening times of the valves.

graph2

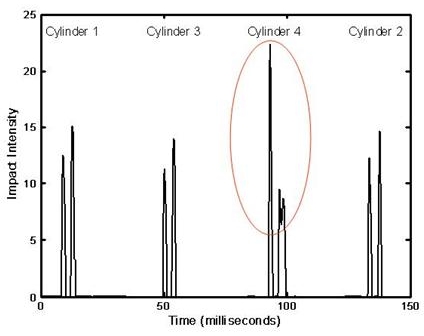

Diagnose defective injector by comparing opening and closing impact intensities across all injectors.

In this example, the detection of the failing injector in cylinder No. 4 is straightforward.
